| Business Type | Manufacturer, Exporter, Supplier |
| Capacity | 0-35 Tons (or As Per Requirement) |
| Platen Size | 350mm X 350mm |
| Mould Size | 300mm X 300mm X 6mm |
| Click to view more | |

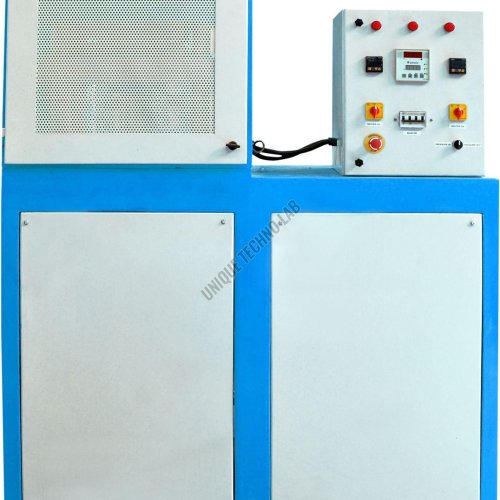

Product Details
Stroke
Day Light Opening 200mm
Temperature Controller
Dedicated Microprocessor Based Temperature Controller For Both Platens
Temperature Range
Maximum Working Range Ambient To 280.0°C And Cooling Timer Range 999 Minutes
Cooling
Through Running Water Cooling System In Both Platens
Connecting Power Supply
5 Kw, 440V, 50 Hz, 3 Phase Neutral And Earth
Paint
Powder Coated
Press Operation
Through Hydraulic Power Pack System Having Pressure Regulating System With Mechanical Needle Gauge Range Up To 250kg/cm². Study And Heavy Angle Structure To Avoid Vibration. Safety Covers To Avoid Burn Injury. Specimen Thickness Tolerance 0.05mm To 0.1mm
Floor
Model
